The Anatomy of a Sierra Foundation: Engineering for Permanence

Sierra Engineering: The 14-Foot Standard

In the Sierra Nevada, the environment dictates the architecture. While the aesthetic finish of a home defines its character, the engineering beneath the surface defines its longevity. This entry examines the structural requirements of a recent addition in the Tahoe basin—a project defined by extreme verticality and the uncompromising physics of high-altitude soil pressure.

The Invisible Architecture of Steel

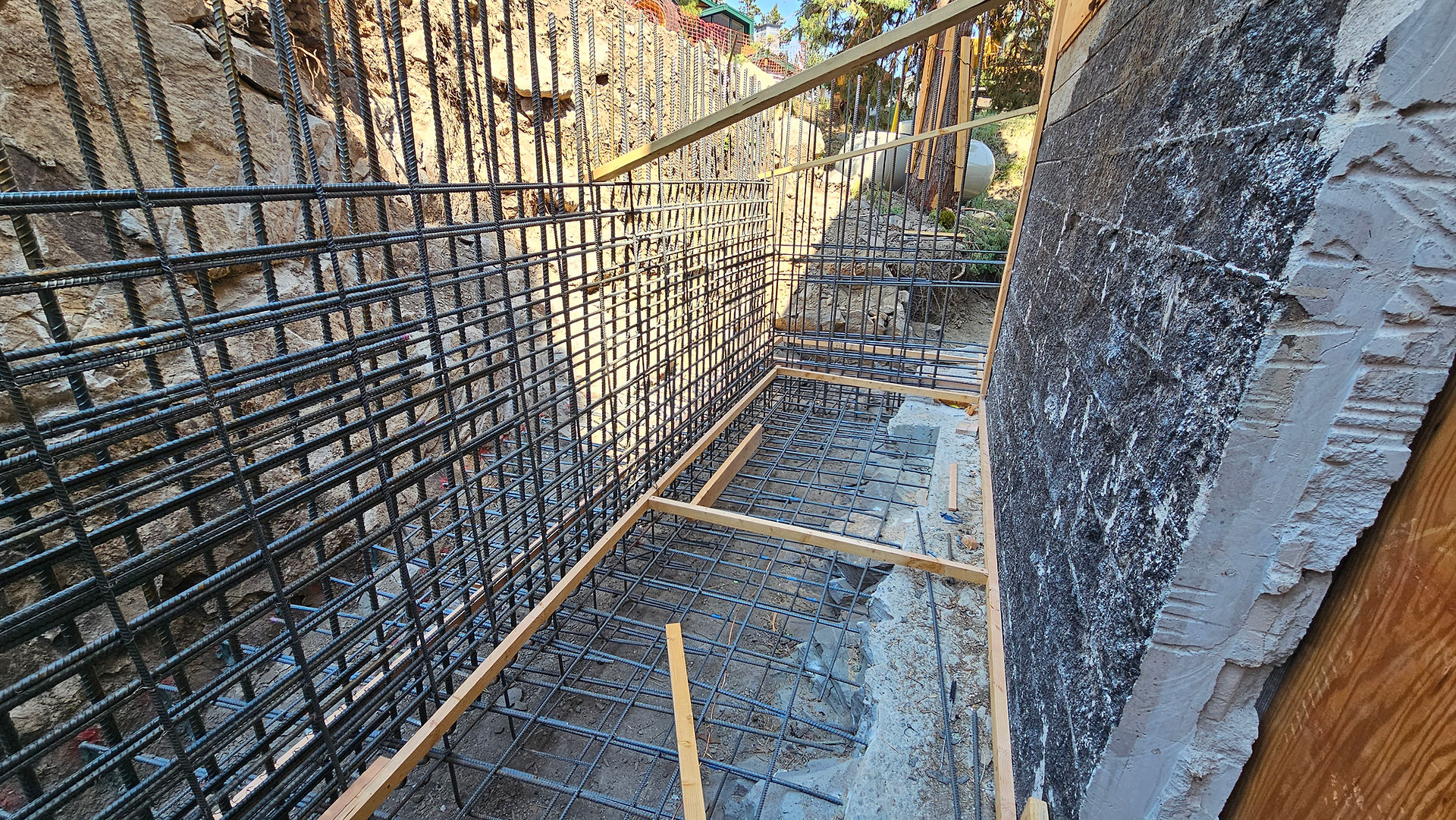

The integrity of a foundation begins with the steel. For a 14-foot vertical span, the rebar schedule must transcend standard residential code to manage immense lateral loads. In this project, we utilized a dense, interlocking grid designed to act as a singular, rigid unit. This ensures that the finished structure remains impervious to the thermal volatility and shifting pressures of the alpine soil, creating a permanent anchor for the residence above.

Battered Geometry as a Structural Solution

When a foundation wall reaches heights of 14 feet, vertical geometry alone is rarely the most stable option. To counteract the pressure of the earth, we utilized a Battered Wall design—a sophisticated engineering technique where the face of the wall is built with an intentional slope. By making the wall wider at the base than at the top, we create a center of gravity that naturally leans into the load, providing superior resistance to the massive weight of the hillside.

Precision in the Pour

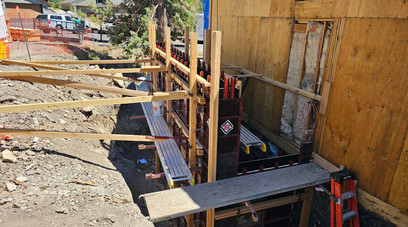

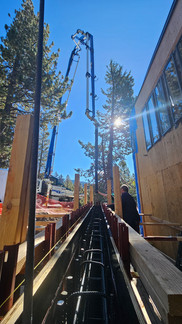

Managing a pour of this scale requires a meticulous approach to formwork and timing. The quality of the finish is a direct result of the pressure and consolidation achieved during the lift. The transition from formwork to cured concrete is a calculated reveal; stripping the upper tiers allows us to monitor the initial cure and ensure a monolithic, unblemished surface. We utilize high-PSI concrete mixes specifically formulated with air-entrainment to survive the relentless freeze-thaw cycles of the Sierra winter.

Architectural Curvature and Engineering Mass

Site infrastructure is as critical as the residence itself. For this project, a 26-foot curved retaining wall was an architectural choice designed to soften the landscape's transition and complement the natural contours of the site. While the curve provides an elegant aesthetic, it necessitated a robust engineering response. To support this vision, we poured a footing 5 feet wide and 24 inches thick, creating a massive horizontal anchor that ensures the architectural curve remains permanent and secure against shifting alpine soils.

The Technical Envelope

The final step in a Sierra foundation is the application of the "Invisible Shield"—a multi-tiered waterproofing and drainage strategy. In an environment where spring snowmelt creates significant hydrostatic pressure, a fluid-applied membrane is an essential layer of defense. For this 14-foot vertical face, we applied a seamless barrier and integrated drainage system to orchestrate the flow of water away from the structure, protecting the integrity of the concrete for generations.

True luxury is peace of mind. We build for the environment we live in.
